Primary Shredders 85 Series VB 85 DK
Primary Shredders 85 Series
Primary Shredders 85 Series
Primary Shredders 85 Series
Primary Shredders 85 Series
Primary Shredders 85 Series
Primary Shredders 85 Series

Primary Shredder 85 DK

  • Cost saving and efficient diesel engines CAT C13

  • Tracks provide high maneuverability and mobility

  • 3 Shredding mods and one individual

  • Conveyor belt magnet

  • Tilting hopper

  • Industry 4.0 - Special module provides remote performance analysis, customer feedback and troubleshooting worldwide

 Order
Type tracked
Drive diesel engine
Power 480/358 hp/kW
see all characteristics

Scope and performance

MaterialOutput t/h
Mixed Waste100
Industrial Waste80
Old Wood60
Construction Waste80
Cable Drums90
Railway Sleepers 50
Tree Roots60
Bulky Waste60
Paper Rolls30
Old Tires30
Aluminum Waste20
Car Bodies20-30

Advantages

  • High performance
  • Mobility
  • Emergency Stop System
  • Remote control
  • Reverse shafts mode
  • Durable shredding parts
  • Hydraulic conveyor
Characteristics
Model
VB 85 DK VB 85 D VB 85 E
  • Type
    tracked stationary stationary
  • Drive
    diesel engine diesel engine two electric motors
  • Power
    480/358 hp/kW 480/358 hp/kW 429/320 hp/kW
  • Output
    20-100 t/h 20-100 t/h 20-100 t/h
  • The volume of the bunker
    3,5 m³ 3,5 m³ 3,5 m³
  • Input Material Size
    2500 - 5000 mm 2500 - 5000 mm 2500 - 5000 mm
  • Output Material Size
    150 - 400 mm 150 - 400 mm 150 - 400 mm
  • Shafts Speed
    23-43 rpm 23-43 rpm 23-43 rpm
  • Discharge Material Height
    5300 mm 4700 mm 4800 mm
  • Transportation Width
    2800 mm 2500 mm 2800 mm
  • Transportation Height
    3120 mm 3000 mm 3120 mm
  • Transportation Length
    11360 mm 8900 mm 11360 mm
  • Operational Length
    9710 mm 12800 mm 12600 mm
  • Controls
    radio remote radio remote radio remote
  • Weight
    35 t 27 t 25 t
  • Shaft Length
    2500 mm - -

Additional equipment

  • Conveyor Belt Magnet
  • System of screens and sifters to separate materials by size
  • Additional Conveyors
  • Dust Suppression System
  • Reversible Fans For Radiator Cleaning
  • Modification and installation of the equipment according to the customer's needs
  • Industry 4.0 - Special module provides remote performance analysis, customer feedback and troubleshooting worldwide

We provide

  • Planning
  • Manufacturing
  • Commissioning
  • Training
  • Warranty
  • Tech Support
  • Supply of components and spare parts
Photos Videos

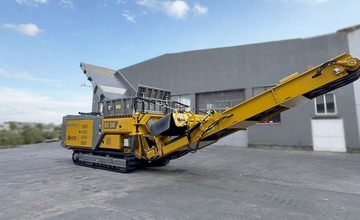

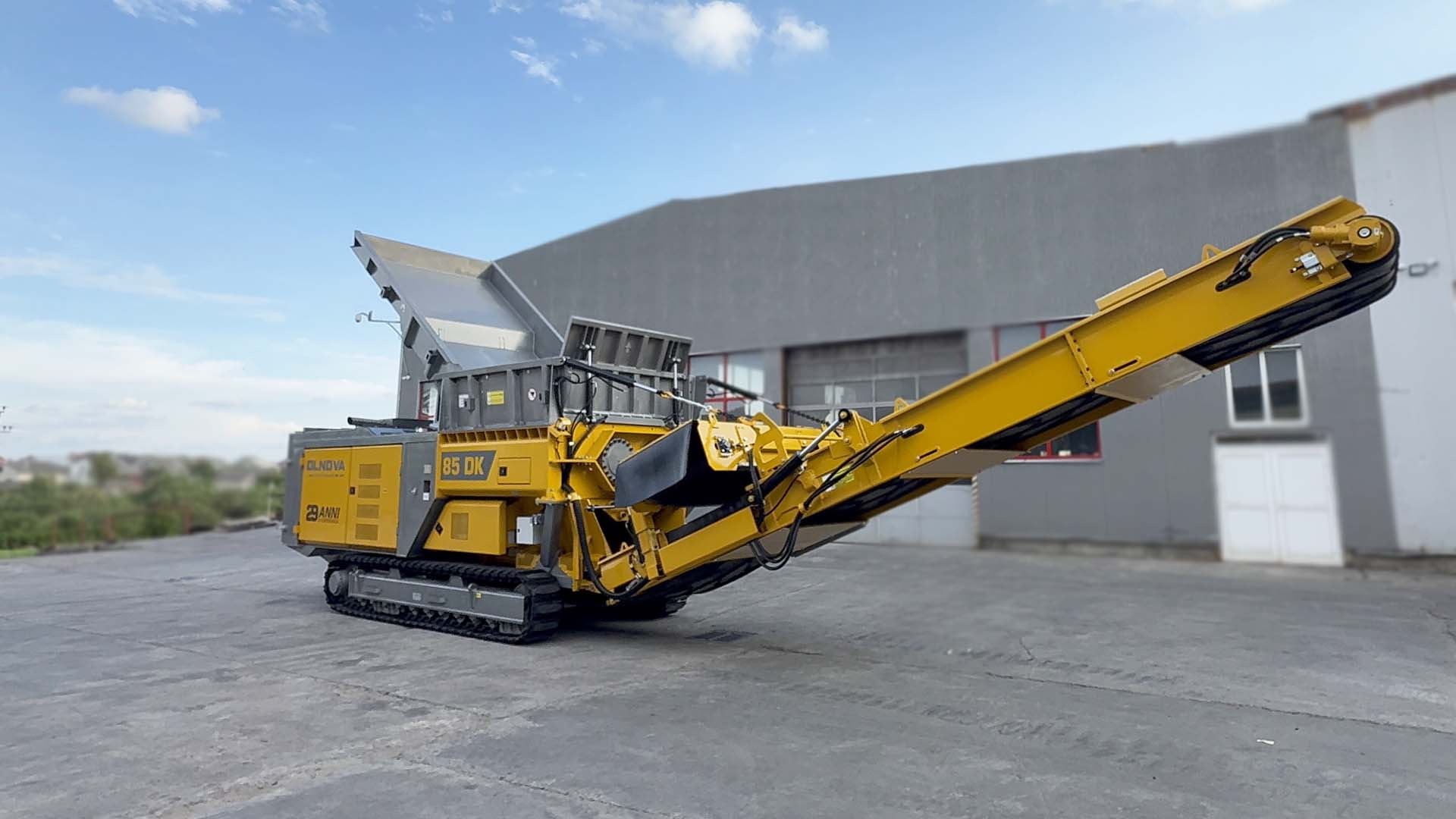

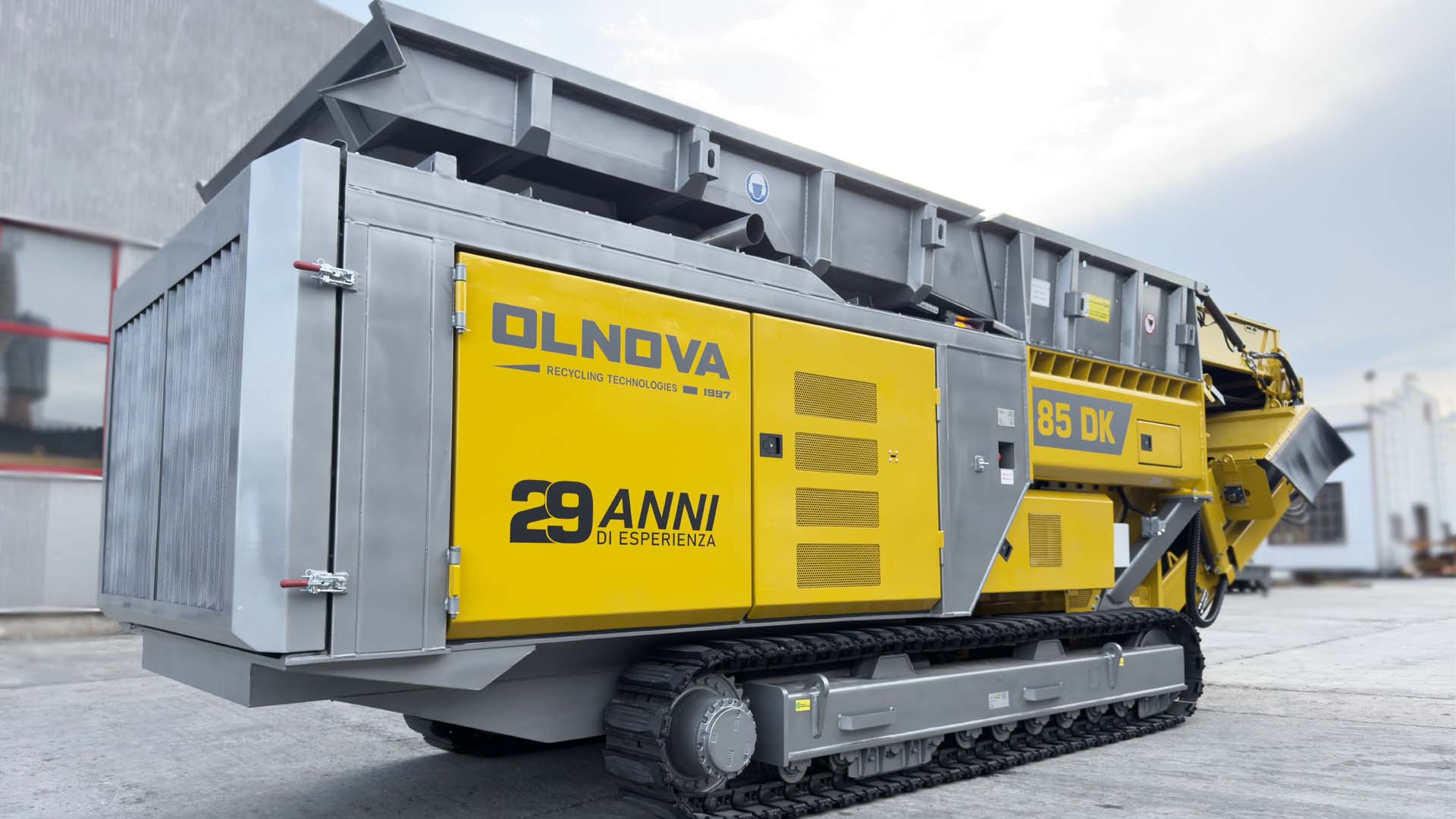

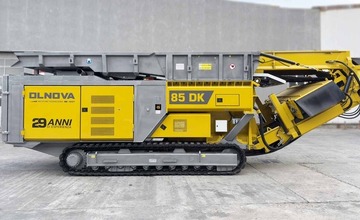

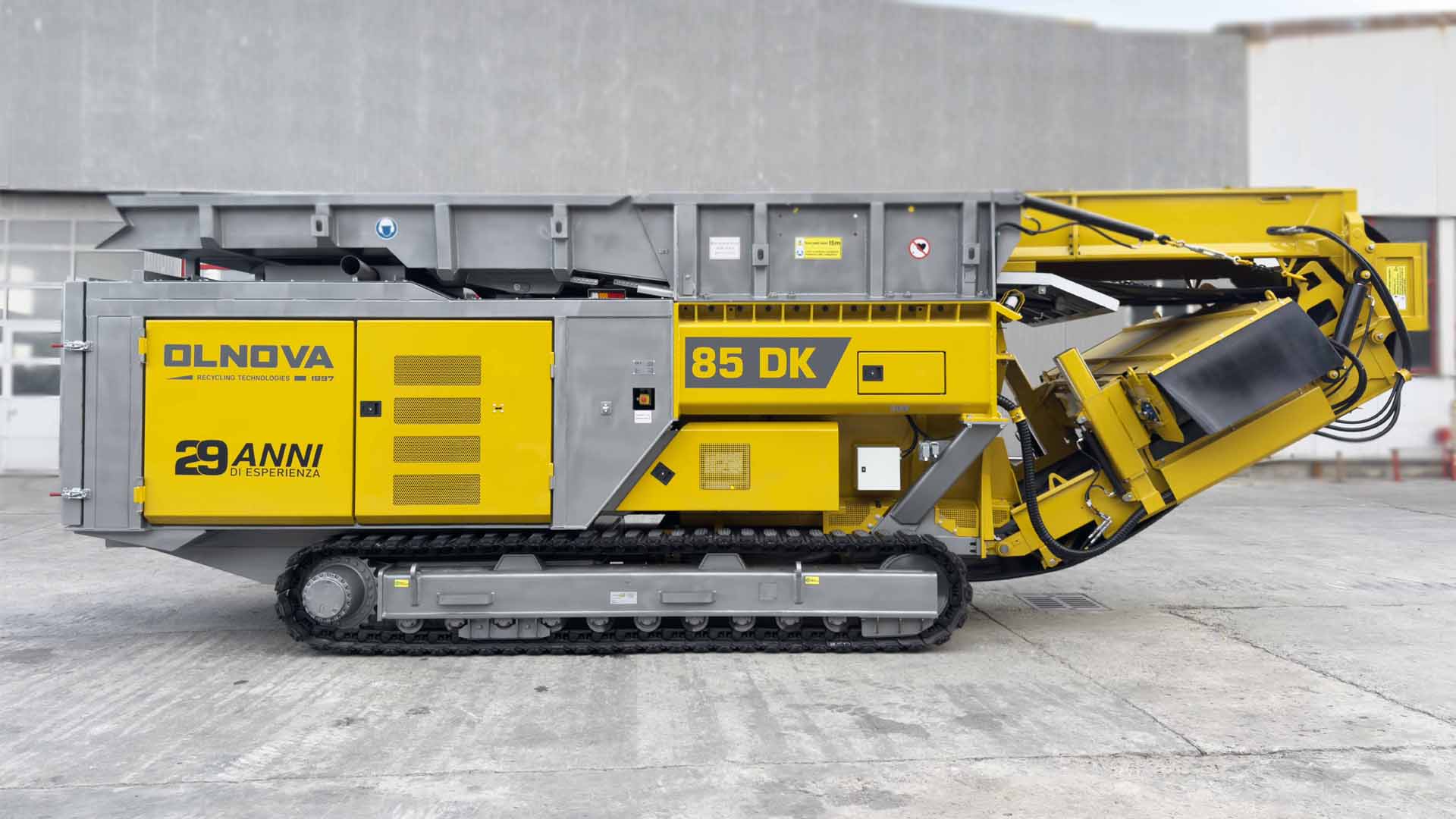

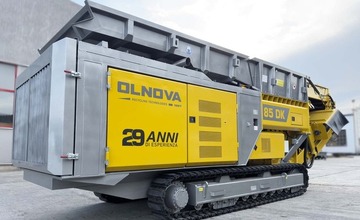

  • Primary Shredders 85 Series 1
